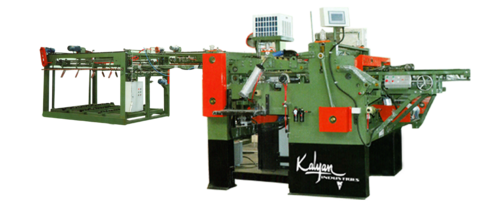

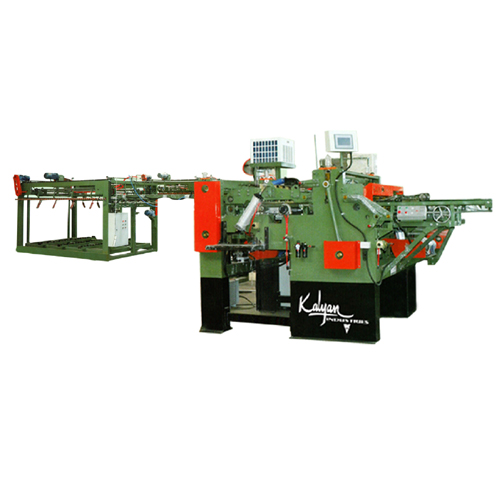

Fully Automatic Plc Long Core Composer

Request to Call Back Send Inquiry

Fully Automatic Plc Long Core Composer Price And Quantity

FULLY AUTOMATIC PLC LONG CORE COMPOSER MODEL - HTCC-Z-1300

Front Clipper Jointer with infeed conveyor.
Out feed Veneer Clipper with conveyor.
Auto Stacker Unit.
The machine is supplied with PLC Control required motors panel.
Machine having 7 Strings i.e. can join veneer at 7 different positions.
Highly strengthened thread, improve product horizontal tensile force flexibility, no break.
Edge Gluing.
Servo motor (Siemens make) for infeed.
Servo motor (Siemens make) for 6 Nos. Chain Conveyor for joining unit.
German Make Rotary Cylinder for Glue applying Fingers.
Delta make PLC.
Taiwan Make electromagnetic Clutch Brake.

Specifications:

Working Width	800 -1290 mm
Feeding Speed	0-35 m/min adjustable
Capacity 4x 8	300 sheets h
Overall size of composer LxWxH	3600x2600x2500 mm
Overall size of stacker (LxWxH)	4000x2200x2300 mm
Overall size of complete line	12000x2600x2500 mm
Front Feeding servo motor power	3.5 kw Siemens
Back feeding servo motor power	3.5 kw Siemens
Total Power	19 kw
Edge cutter drive	Motor + Electromagnetic Clutch Brake Taiwan
PLC	DELTA
Rotary cylinder	FESTO Germany
Net weight	7000 kgs.
Automatic Veneer Corrector	Yes
Water cooling air condition	Yes
4x4 / 4 x8	Yes
Cooling Unit	Yes
Platform	Yes
